• Intake Air Temperature Relocation Kit for Arctic Cat 700 EFI and Suzuki 700/750 EFI

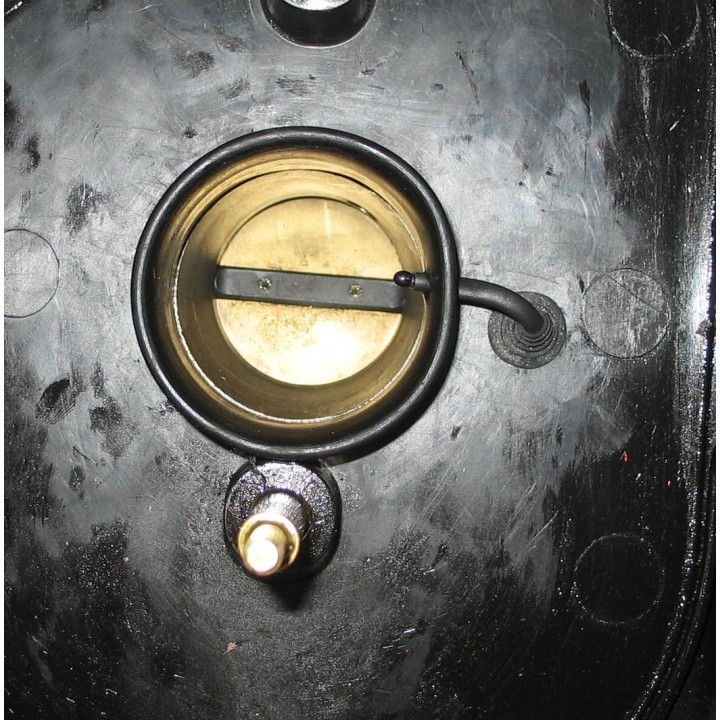

  • Intake Air Temperature Relocation Kit Installed

Intake Air Temperature Relocation Kit for Arctic Cat 700 EFI and Suzuki 700/750 EFI (up to 2018)

$ 47.13

Get more consistent power output with our Intake Air Temperature relocation kit.  Works with the stock ECU or our Copperhead ECU.  NOTE:  Only works for 2005-2018 model years.

  Delivery policy

All in stock orders are shipped within 1 business day of cleared payment.

  Product Issues

Customer service is our #1 priority. We will replace any confirmed defective product next day.

  Payment Methods

We accept VISA, MasterCard, and AMEX.

The Intake Air Temperature (IAT) relocation kit replaces the stock IAT sensor from the edge of the factory air box to the throttle body. This ensures the ECU gets an accurate reading of the actual air charge temperature. The stock sensor typically reads approximately 5 degrees Celsius hotter that the actual temperature during normal operation (upwards of 15 degrees Celsius once a hot engine is stopped for several minutes). This robs the engine of up to 5% of the power, and gives it a lean miss when the engine is hot.

NOTE:  Only works for 2005-2018 model years.

Manual

IAT KIT INSTALLATION INSTRUCTIONS

Specifications

IAT KIT SPECIFICATION SHEET

  • Brand
  • Reference
    IAT-SUZ700-KIT

  • Compatible Machine Year
    2005
    2006
    2007
    2008
    2009
    2010
    2011
    2012
    2013
    2014
    2015
    2016
    2017
    2018
    2019
    2020
  • Compatible Engine Size
    700
    750
  • Compatible Fuel Delivery
    Fuel Injected
  • Dimensions (LxWxH)
    71mm x 42mm x 21mm
  • Weight
    37 g
  • Warranty
    1-Year
  • Operating Temperature
    -55C to +100C
  • Compatible Machine Manufacturer
    Arctic Cat
    Suzuki
